I did my brothers 2011 and my 2013 etec 800 last season. The seal is held in place by the outer steel plate. The seal only goes half way into the case. Easy to do. Remove clutch, remove 4 Phillips head screws, clean the bearing out with clean rag. Grease the bearing, place grease on the inside surface of the seal. [emoji106]



^ Use a new seal! But it is simple. I try to remove all of the old grease out of the bearing with GOOD Qtips.



^ Use a new seal! But it is simple. I try to remove all of the old grease out of the bearing with GOOD Qtips.

Yep, meant to write new seal [emoji106]



Thanks guys



Here's a pic of mine



Everyone always does the PTO bearing. But what about the mag side?



Here's a pic of mine

What do you use to press the new one in?



It doesn't press in. There is a plate (not pictured) that holds it in place



Everyone always does the PTO bearing. But what about the mag side?

And the second bearing on the PTO side.



From experience; be sure to apply significant pressure on the 4 crews (M6X20) holding on the plate. I found it pretty easy to round out the heads. It's a simple and satisfying maintenance project.



Everyone always does the PTO bearing. But what about the mag side?

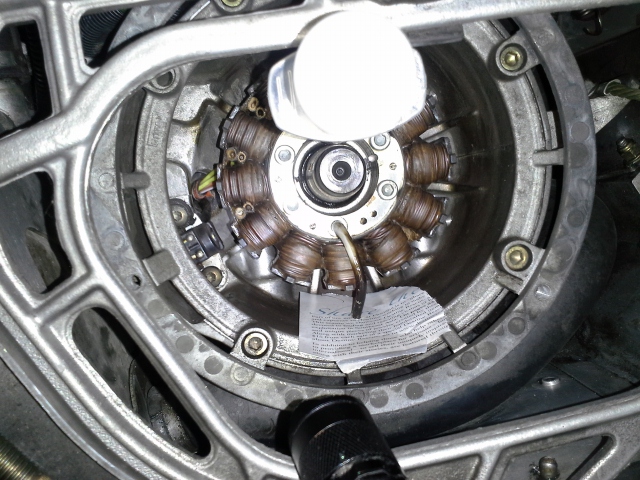

I did my mag side at the same time as the PTO. It's much more involved. I had to make a flywheel holder for removing and torquing the flywheel retaining nut. I removed two stator mounting bolts then used a syringe with a small hose to inject the isoflex.



From experience; be sure to apply significant pressure on the 4 crews (M6X20) holding on the plate. I found it pretty easy to round out the heads. It's a simple and satisfying maintenance project.

Yep, I replaced all 4 screws. Use an impact screwdriver [emoji106]



I did my mag side at the same time as the PTO. It's much more involved. I had to make a flywheel holder for removing and torquing the flywheel retaining nut. I removed two stator mounting bolts then used a syringe with a small hose to inject the isoflex.

Doing my PTO side this weekend. How was the Mag side compared to the PTO side as far as amount of grease left and how much it was broken down ?



The MAG side is injected through a hole. I only added to it a little bit. Too much and you blow out the seal.



The MAG side is injected through a hole. I only added to it a little bit. Too much and you blow out the seal.

Curious how much you added



I don't recall. I went off of the research I had done.



Just did this on my 15 xrs. 5300 miles and i was shocked how little grease was left in there.

used a syringe with a blunt needle tip to inject it inside the ball retainer and then put some on the outside. new seal and closed it back up.

Its got me thinking i should look at the mag side.



Did my 2009 600 etec PTO & Mag when it had about 5000 miles on it over 10,000 miles on it now, sled is a loaner sled now doesn't see much use anymore.



Saw this thread - I was packing my pto bearing with new isoflex and replacing the seal. Old seal came off fairly easy - flat blade screwdriver on edge. I was confused putting new seal on as I thought I had to press it in past the little ridge that is on the edge of the seal and could not get it in that far at all. Now thinking I don't need to do that at all and just had press in evenly by hand and put retainer cover back on and that cover will keep it from backing out ? Is that correct ? I saw comments elsewhere that some were using pvc pipe piece to tap it in ? Bit confused what SkidDoo recommends here - wish I had a shop service manual. And those original style screws can get rounded out easily - I went right out and got same stainless screws in proper size with Allen head.



I'm pretty sure I used a piece of pipe and just tapped on it and set it the rest of the way with the screws.



Saw this thread - I was packing my pto bearing with new isoflex and replacing the seal. Old seal came off fairly easy - flat blade screwdriver on edge. I was confused putting new seal on as I thought I had to press it in past the little ridge that is on the edge of the seal and could not get it in that far at all. Now thinking I don't need to do that at all and just had press in evenly by hand and put retainer cover back on and that cover will keep it from backing out ? Is that correct ? I saw comments elsewhere that some were using pvc pipe piece to tap it in ? Bit confused what SkidDoo recommends here - wish I had a shop service manual. And those original style screws can get rounded out easily - I went right out and got same stainless screws in proper size with Allen head.

<Now thinking I don't need to do that at all and just had press in evenly by hand and put retainer cover back on and that cover will keep it from backing out ?>

You got it! 100%
