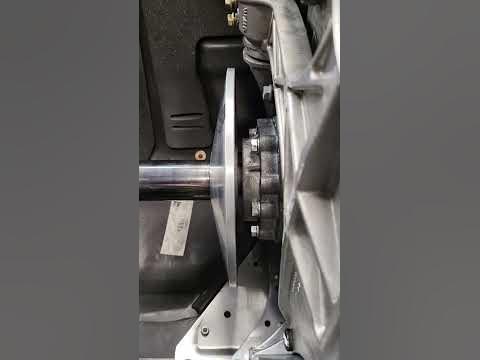

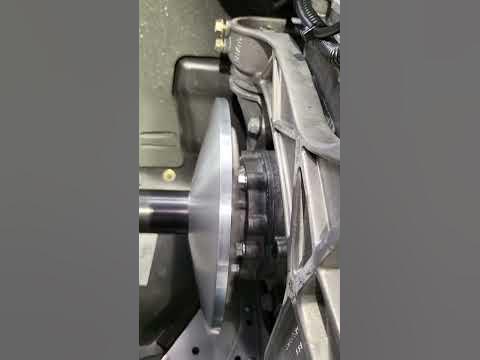

I just found my inner clutch has a wobble. I put on my other pdrive inner and its fine. Going to show the dealer and hopefully i dont have to bring in and the just give me a new inner.
Something for everyone to check.





·
Registered
Joined
·
1,038 Posts

·
Registered
Joined
·
951 Posts
Discussion Starter · #4 ·
I have a pdrive from a 2018 600rs that i used on my 2016 1200 turbo until i got a tapp.
The 600rs pdrive innner does not wobble as u can see.

From what i remember the wobble was for the 850 only and i dont see or think it should be on the 900t no?

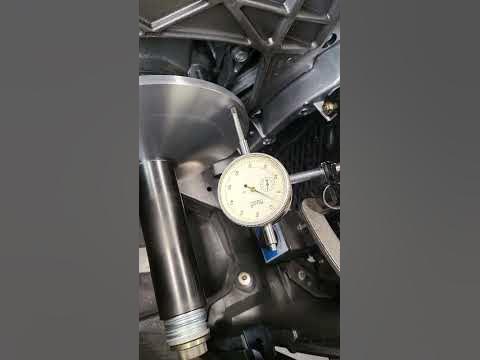

Can anyone else have a look and verify the inner wobble?


·
Registered
Joined
·
951 Posts
Discussion Starter · #8 · (Edited)
Don’t think the wobble is intended for a triple, just a twin.
I agree. I just need others to check and then i can confirm that mine is faulty or that this is what brp is sending out.
I also see that the part number is different between the 850 and 900r inner halves. I don't think it should be a wobbler

And now i just checked and the number stamped on the innner half is 417224252 and the on-line manual says it is 417224210. 850 number is 417224332. This is all for 2022.
I know online manuals arent always correct...


·
Registered
2022 MXZ X 600R
Joined
·
2,370 Posts
  • Like
Reactions: DITCHBANGERPRO

·
boost junkie
Joined
·
11,762 Posts
the x3 with pdrive does not have the notched crank...I can not see any wobbling on any of my 900t's


·
Registered
Joined
·
951 Posts
Discussion Starter · #11 ·
the x3 with pdrive does not have the notched crank...I can not see any wobbling on any of my 900t's
I havent seen any wobble on previous 19 to 21 900t that i have worked on. Just waiting for some other 22+ 900r owners to chime in and see what they do..


·
Registered
Joined
·
951 Posts
Discussion Starter · #15 ·
pull off the half and look at part number, maybe its an 850 half?
I did, the number stamped is 417224252, the online parts manual says it should be 417224210- which is the number of all 900t and 900r. The 850 number is 417224332.
Not sure if there is a change up, i tried to find the inner half number that is on mine (252) to see if was for other models but couldn't find a match... hopefully the dealer can explain


Can i get a few more ppl checking their 900r for wobble please!

Automotive tire Circle Rim Pattern Wood


·
Registered
Joined
·
951 Posts
Discussion Starter · #17 ·
Also, let me know what part number is on your inner half.

Thanks


·
Registered
Joined
·
951 Posts
Discussion Starter · #19 ·
Ya I seen that thread. My take on it is that my inner is a wobbler that the 850 runs. It sure seems there is something funny going on with this inner half on skidoos end. The guy ordered one part number then got a different number each time he ordered which was 2x....one made in taiwan and one made in usa.
Not sure what is going on. Off to the dealer tomorrow i guess.
