Posted 04 July 2012 - 12:37 PM

This will be for Free/ cheap Mods only, let's keep it under $50 Let's try to have pic's with them also. Maybe add the benefit of the mod also. HAY MODERATORS WE WANT THIS STICKIED PLEASE!!!

13 XM 154 800

06 800 X 151




#2 rocks rev

rocks rev

    Advanced Member

  • Members
  • PipPipPip
  • 2,090 posts
  • Gender:Male
  • Location:Flat Tops Colorado
  • Interests:4 wheelin hunting fishing Dirt bikes
  • Sled:Mine 17 850 165x3 Hers16 T-3 163 800

Posted 04 July 2012 - 12:40 PM

Pull all the foam from under hood/ engine bay. When it gets wet/freezes it adds weight.

13 XM 154 800

06 800 X 151




#3 NTD

NTD

    I'm not new

  • DOOCrew
  • 25,232 posts
  • Gender:Male
  • Location:Loudon, NH
  • Sled:16 FR154, 14 GSX 600

Posted 04 July 2012 - 12:54 PM

First thing did was knee pads. :righton

sorry no pics of just the knee pads though

Oh and a temp gauge...pretty sure that was under $50 and I feel very necessary.

#4 user1

user1

    Advanced Member

  • Members
  • PipPipPip
  • 3,319 posts
  • Gender:Male
  • Location:Toledo,Ohio
  • Sled:mxz x-rs 800

Posted 04 July 2012 - 12:58 PM

Balance primary...close to $50.





#5 wyorever

wyorever

    "The most hated man on DooTalk"

  • Members
  • PipPipPip
  • 18,579 posts
  • Gender:Male
  • Location:God's Country, Wyoming
  • Sled:13 162X3 XMX SHR 880, 17 850 SP, 18 850X

  •

Posted 04 July 2012 - 01:27 PM

Pictures and benefit people, come on! I'll post some later today.

#6 wyorever

wyorever

    "The most hated man on DooTalk"

  • Members
  • PipPipPip
  • 18,579 posts
  • Gender:Male
  • Location:God's Country, Wyoming
  • Sled:13 162X3 XMX SHR 880, 17 850 SP, 18 850X

  •

Posted 04 July 2012 - 06:40 PM

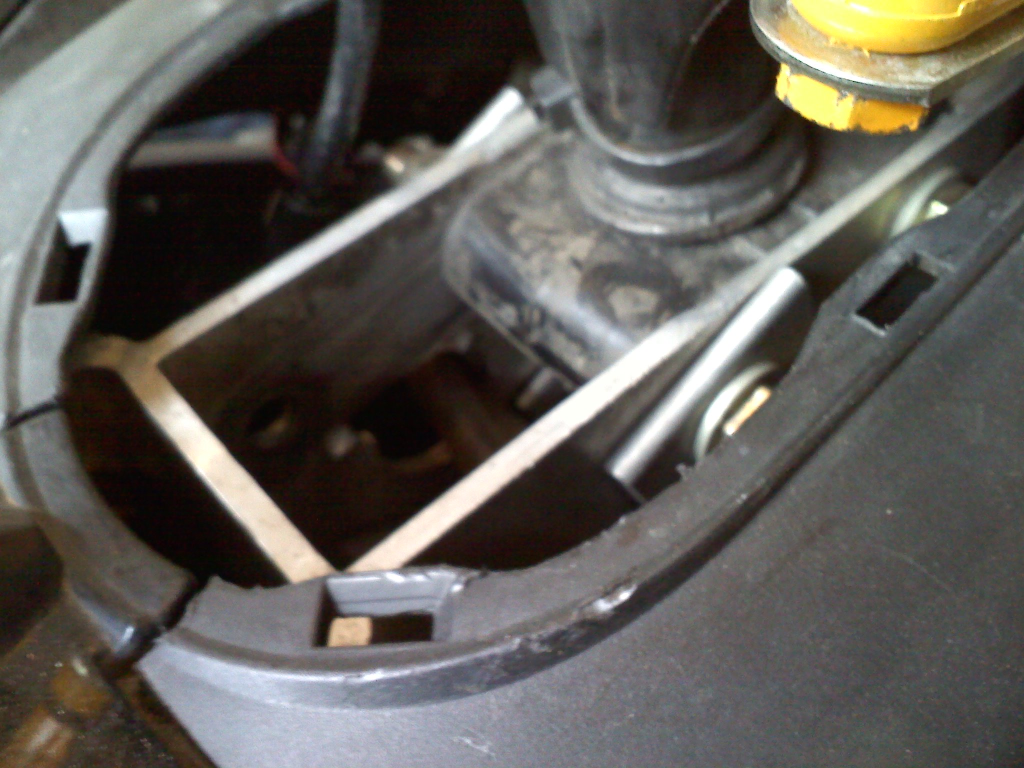

I'll start with my post forward, pretty well known mod, supposedly helps carve and sidehill easier (I haven't ridden it this way yet).

The picture shows the holes in the back, where the rear mounts of the post used to go. Simply take the bolts out push the post forward, put one of the bolts back in, drill out the front hole, second bolt in and you're good to go.

Total cost-$0

Posted Image

#7 wyorever

wyorever

    "The most hated man on DooTalk"

  • Members
  • PipPipPip
  • 18,579 posts
  • Gender:Male
  • Location:God's Country, Wyoming
  • Sled:13 162X3 XMX SHR 880, 17 850 SP, 18 850X

  •

Posted 04 July 2012 - 06:47 PM

Second, already have a post on this but I'll put it here too, instead of spending $400 to $500 on a seat I made my own out of the stock seat.

Before

Posted Image

After
Posted Image


Total cost-40 staples for the staple gun.

#8 wyorever

wyorever

    "The most hated man on DooTalk"

  • Members
  • PipPipPip
  • 18,579 posts
  • Gender:Male
  • Location:God's Country, Wyoming
  • Sled:13 162X3 XMX SHR 880, 17 850 SP, 18 850X

  •

Posted 04 July 2012 - 06:52 PM

Lastly for now, I didn't like the way the clear tank looked, but I needed to still be able to see how much fuel I had in the tank. So I got some plastidip to give the tank a plastic coat and to be able to leave part of it clear to still be able to check my fuel level

Posted Image

And so I can still see in the tank I left this clear...
Posted Image

Total cost-about 35 dollars for the plastic coating.

#9 mxzeatr

mxzeatr

    Advanced Member

  • DOOCrew
  • 45,320 posts
  • Gender:Male
  • Location:Bellaire, MI
  • Sled:13 Summit X 154" & 06 Summit X 151"

Posted 05 July 2012 - 07:19 AM

First one for me (since I have giant feet) is to cut the panels open for more foot room, it doesn't move you more forward, but it certainly helps get your feet in/out/etc. After being "hooked in" the stirrup and getting my foot broke on my first REV, this seems to help a lot.

Posted Image

Posted Image

Posted Image


Second, and while I haven't rode with it yet, it will certainly help me out. I'm a bigger guy, and always seem to find the RER button at in-opertune times, so I did the switch relocation mod that Irondog had done quite a few years back, I'm looking forward to it thats for sure!

Posted Image

Printing some graph paper online and carefully laying it out on your panels and drilling a 5/64" grid pattern is good for some cheap/easy/free venting too.

Posted Image

Posted Image

#10 Danzick

Danzick

    Advanced Member

  • Members
  • PipPipPip
  • 1,756 posts
  • Gender:Male
  • Location:Livingston, MT
  • Interests:Everything
  • Sled:2010 xp 154

Posted 05 July 2012 - 08:45 PM

old picture of my sled, but when i still had the stock running boards, i took a piece of masking tape and masked from the snow flap mount to the drop bracket and trimmed my tunnel to have a nice even rise instead of the weird stock style, and i cut my running boards and raised them up.
Posted Image
Posted Image


i also did the switch relocate. i used a buzzer button from ace for the reverse and toggle switches for the hand warmers and lights.

Posted Image

go to home depot and ask for some "pet screen". i did a headlight delete and use a small fog light from oriely's, and replaced the stock metal screens with the pet screen. i used hot glue and its pretty strong actually.

Posted Image
Posted Image
Posted Image


next is the 2 wheel kit! free if you have a tap set. these are not my instructions, i found them off of another site

cut the axle to 8 7/8"
cut the spacer to 4 1/4"
tap the axle with the correct metric threads, or use a 3/8 course SAE it works ok.

#11 honda400ex2003

honda400ex2003

    Advanced Member

  • Members
  • PipPipPip
  • 5,718 posts
  • Gender:Male
  • Location:Mosinee, WI
  • Interests:fourwheeling, sledding, fishing, snowboarding, anything outdoors
  • Sled:2015 mxz x-rs 2006 mxz

Posted 05 July 2012 - 09:23 PM

subscribed

i have the DIY mods thread in the rev forum. this should be interesting also since it is a cheap mod thread.

i dont really have any cheap ones for the sled, more like additions that make it better like a muff pot and summit strap for the bars.

steve

2015 Black XRS 800- Estart, QA, caddy, 1.6" ice cobra, grip & rip braces, Reed's clutch kit, 26 tooth top gear, TS skis, Hygear dual rate front springs



2006 MXZ 800X- SPI head and header, MCB dual rings with extra oil holes, 7 hole base gasket, vforce reeds, 2" challenger, floater secondary, 23/45 gears, 6.9 pilots shimmed, Bill Cudney clutch kit, caddy, extended from 121

2009 MXZ 500SS- studs, grip & rip braces, summit seat, 1" riser, adrenaline shocks, handlebar bag, WOT rack with roto-pax tank, medium doo bag


#12 wildcard28

wildcard28

    Advanced Member

  • Members
  • PipPipPip
  • 1,142 posts
  • Gender:Male
  • Location:Clarkston WA
  • Interests:Snowmobiling, Nascar, Fishing, some camping
  • Sled:04 Skidoo Rev Summit X 159

Posted 06 July 2012 - 01:19 AM

Hello here is a free mod or just the price of an extra pair or quick strap mounts, I have my goggles trimmed a bit where they lock on to my helmet at the quick strap mount so they will come off my helmet easier then the hard tug to get them to unclip off like when I need to wipe and clean them, but I never had a place to put them with out them fallin in the snow or slipping off the seat or dash so I trimmed the plastic mount and stuck it to the top of the controls so I can hang my goggles to my handle bars with out falling in the snow. sometimes when Im getting unstuck or need to go help a friend get unstuck I like to leave my helmet on but if I let my goggles hang from my helmet they seem to get filled with snow or swing and get in the way other wise if I leave them over my face they would fog up so I came up with this idea to set the goggles aside I also put the other velcro piece glued to the
bar pad for if I want to swap goggles I guess I could hang both pairs to the sled with out them falling off the sled.
this mod is actually Really handy.

Posted Image

also here is what I did for the footwell mod, I trimmed the side of the panel to the same shape as the inner mount.

Posted Image

Wildcard.

04 Rev Summit X 800HO
06 Summit X Seat
BR Tech Smoked Hood

2cool venting

Snowbunjie Dash mod
SHR 150+hp ported Torquer Kit

HPS Can

Quick Clickers

Oil Injctn delete

Headlight delete

Koso temp guage
Alternative Impact 37" A arms

MCB Oil lite bushings
Flipped Front shocks
HPG shocks

Snow Eliminators

Post Fwrd mod

VEI D&R

MXZ X front Nun
159 Track
XP skid Tmo kit
2 Whl Kit

XP Rr bumper
Ice Scratchers

No Swaybar
19/47 gearing
Powermadd Handguards
Cobra Windshield

7" Fly Risers

Freeride bars
Freeride grips & heaters
6.9 Pilot Mods
No Bgi Whls

Snobunjie bar bag
Mountain Adictn Track Rack
Arctiva Riding Gear
HMK Backpack
Viole Shovel
Dragon MDX goggles

Lead dog light
Go Pro 3


#13 Trippy

Trippy

    Everybody love Everybody

  • DOOCrew
  • 79,457 posts
  • Gender:Male
  • Location:SKONNY
  • Interests:Sticking forks in outlets
    Making PBJ sammiches for the crew
    Polluting the woods with Klotz
  • Sled:Tree Magnet ☺ 2016 Summit 156x3 SHR860BB

Posted 06 July 2012 - 11:01 AM

Take the plastic piece off the clutch cover, trim the tabs off, and put some holes in it.... Let that thing stay cool....

Posted Image

#14 hpjunkie

hpjunkie

    Advanced Member

  • Members
  • PipPipPip
  • 255 posts
  • Gender:Male
  • Location:High Prairie,AB.
  • Sled:'14XM154/'13BCX/1118 CK3 Asphalt Racer

Posted 07 July 2012 - 01:01 PM

Sway bar removal & stiffen up front springs (if it fits your riding style), removal of track clips (clipped every other/every third) small ports in ctr of track (1") clips & porting usually good for 3.5-4lbs on a 151 track. Spending some time to set-up clutching & suspension for YOUR riding style/ weight

#15 mil81

mil81

    Advanced Member

  • Members
  • PipPipPip
  • 1,219 posts
  • Gender:Male
  • Location:Kamloops, BC
  • Sled:2003.5 REV Summit 800

Posted 07 July 2012 - 03:54 PM

Mxzeatr, where did you get you switches? Those all look like the ones I have in my head for when I do mine this summer
