2009 TNT Sled Build
2009 Blue Everest hood and console
2010 White TNT panels
Custom graphics and numbers done by Advantange-Vinyl of Brantford
Cosmetic Modifications
2011 Summit Freeride White nose cone
Modified seat with RS tail light and 2" of water resistant foam added redone in blue vinyl
Tricked Toyz billet pull handle
Tricked Toyz Billet choke lever
Tricked Toyz Brake reservoir cap
New White USI railer skis with blue mounts

Shocks and Chassis Modifications
2002 440 Front piggyback shocks with dual rate springs(out for powdercoating)
2007 440 centre shock with dual rate spring and stainless hose added
2010 RS rear shock
All shocks rebuilt and revalved by Ian at Monster Performance
2010 Ski-Doo RS rear axel with 4 wheels
RS wheels
2010 600RS Drive axel
2006 440 2 ply 120" with 84 studs thanks Ian
2010 Ski-Doo RS Outer tunnel Extrusions
2009 Ski-Doo RS Rear footrests
2010 Ski-Doo RS steel rear skid mounts
2010 Ski-Doo RS steel front skid mounts
2010 Ski-Doo RS Steel running board braces
2010 Ski-Doo RS Aluminum running board braces
2010 Ski-Doo RS footholds
2010 Ski-Doo RS tunnel protectors

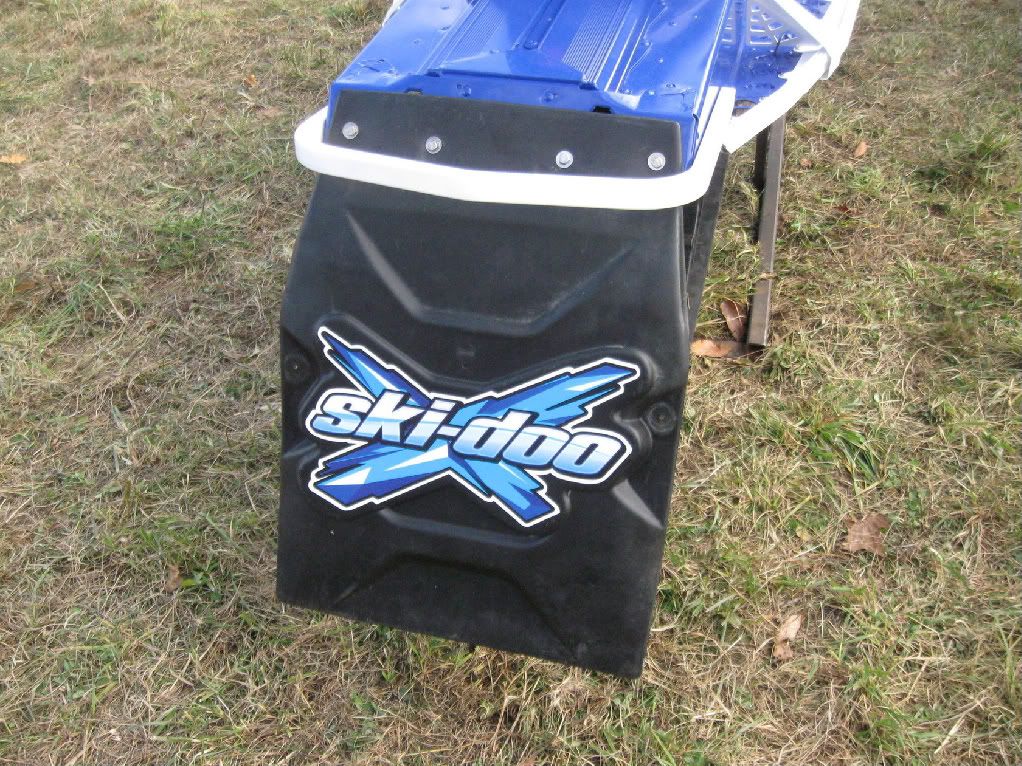

2010 Ski-Doo RS Snowflap, Custom Graphic
2010 Ski-Doo RS motor brace

Motor, Gearing, Clutching
23 RS top gear
45 bottom gear
Higher engagement spring
Ski-Doo temperature module
Pipe Cover Powdercoated Blue

Handlebars
2007 440 Steel Handlebars
2003 440 "Bat-Wing" handgaurds Wrapped in White Vinyl
Preheat button for wired RER
2007 440 headlight switch
2007 440 kill switch
2007 440 aluminum throttle block and lever
Powermadd 6" riser

Yet to do
Second Limiter strap
Rail reinforcements
Center Shock Lower cross brace
2011 600RS Upper A-Arm bracing
Set up secondary clutch as per race department recommendations
Registration Numbers

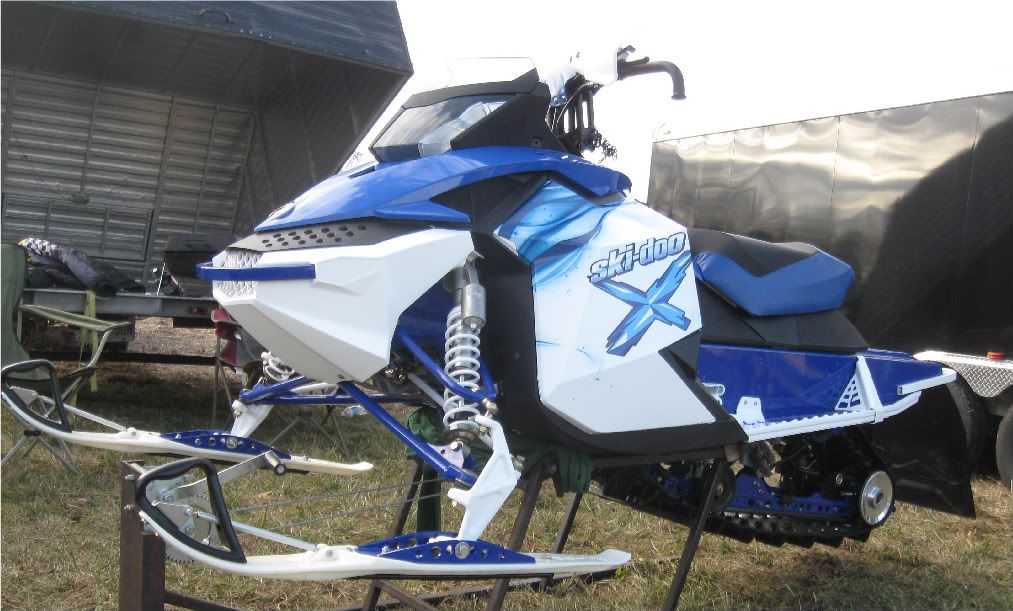

Here's the pictures

[sngsht]

Sweet-looks great!

[big hammer]

that looks very, very nice!

[Back-To-Doo]

Nice looking sled!!

[qwick68]

Nice looking sled!!

X2!

[06lowrado]

Very Nice! Only thing I am not sure about is the billet wheels. Rs ones would look better IMO.

[one_fast_x]

Looks SICK!

[Jscherbs]

everything looks sick
















-back axle

[doc1]

I only had 1 rear outer wheel, so I borrowed those for the day, still don't know what I am using for wheels. Thanks for the comments! Let me know if you have any questions. I would like to Thank Advantage-Vinyl, Ian from Monster, Twinpower or Rene, and a friend for the powdercoating.

[calibrate]

we were parked beside you in that inclose trailer !

[snoo-man]

looks good man...the only thing I'd try and do is pull the material at the rear of the seat by the light tighter...it looks kinda lose but killer sled!

[snowmo8]

Looks great! I like it!

[cj5crawler76]

the side panel graphics look awesome

[doc1]

Thanks for the compliments, I wanted something no one else has or will have. He did a great job with the graphics. The panels are entirely wrapped in white 3M vinyl.

[doc1]

Thanks for the compliments, I wanted something no one else has or will have. He did a great job with the graphics. The panels are entirely wrapped in white 3M vinyl.

Here's some more pictures. This is the rendering I got my friend I met on dootalk to make for me after I bought the hood and console mid winter.

Then it just went downhill from there!
